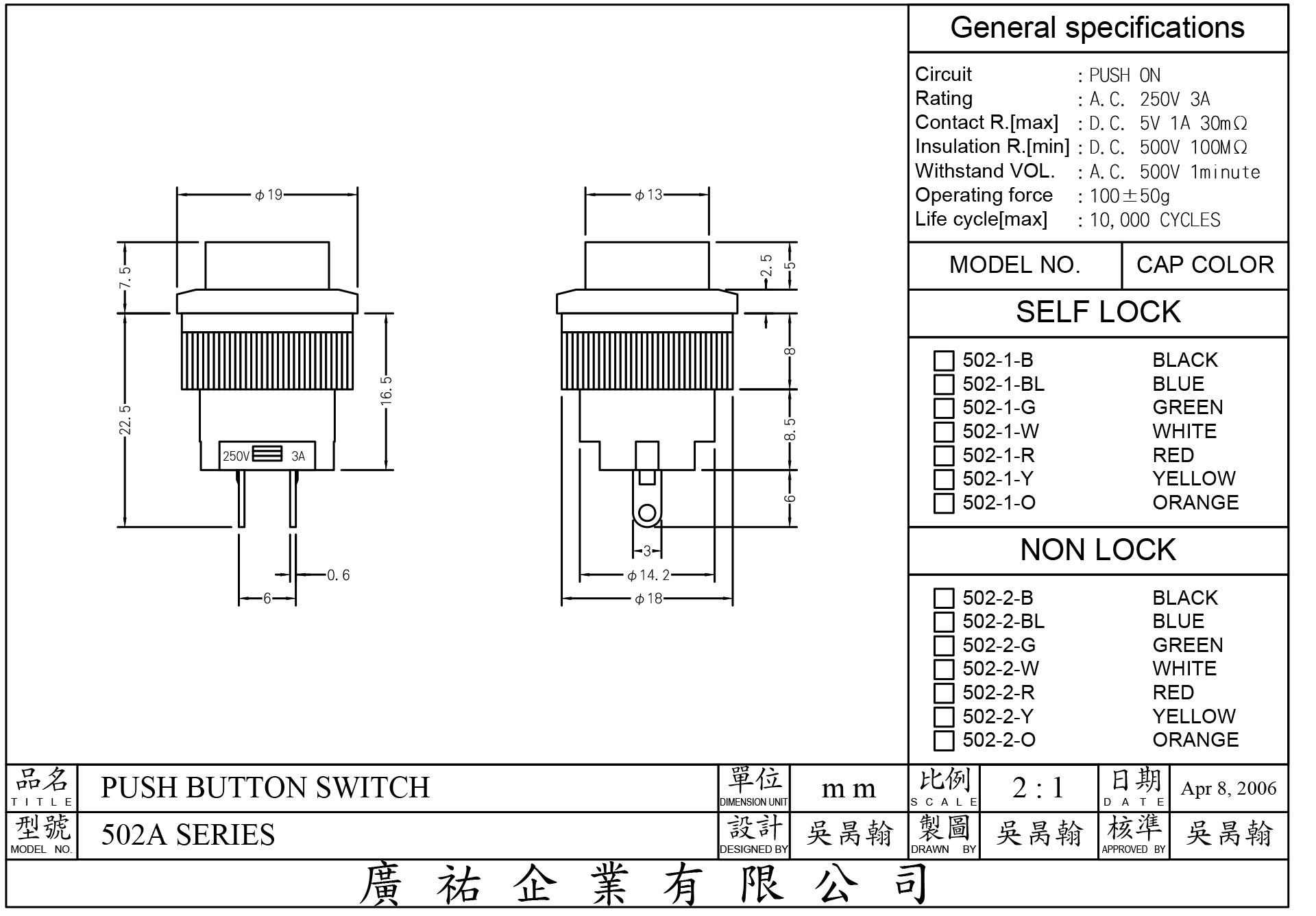

502A
按鍵開關
502A
-
CIRCUIT:
(1)Push on (2)Push on/off
-
RATING:
A.C. 250V 3A
-
CONTACT R. [max]:
D.C. 5V 1A 30mΩ
-
INSULATION R. [min]:
D.C. 500V 100mΩ
-
WITHSTAND VOL.:
A.C. 500V 1 minute
-
OPERATING FORCE:
100±50g
-
LIFE CYCLE [max]:
10,000 CYCLES
-
CIRCUIT:
(1)Push on (2)Push on/off
-
RATING:
A.C. 250V 3A
-
CONTACT R. [max]:
D.C. 5V 1A 30mΩ
-
INSULATION R. [min]:
D.C. 500V 100mΩ
-
WITHSTAND VOL.:
A.C. 500V 1 minute
-
OPERATING FORCE:
100±50g
-
LIFE CYCLE [max]:
10,000 CYCLES
